STEAM GENERATOR
Compact, Efficient Steam Generation for Corrugation Applications
Electro Heat Engineers' Steam Generator is a compact, once-through steam generation system designed to provide an efficient and reliable source of steam for corrugation applications.
Built around 3-pass, once-through technology, the system combines high thermal efficiency, effective steam separation, corrosion protection and automatic operation in a compact design.
KEY FEATURES & BENEFITS
3-PASS, ONCE-THROUGH DESIGN
A compact Non-IBR steam generator with multiple fuel-firing options, designed for efficient steam generation.
FLEXIBILITY OF ENERGY SOURCE

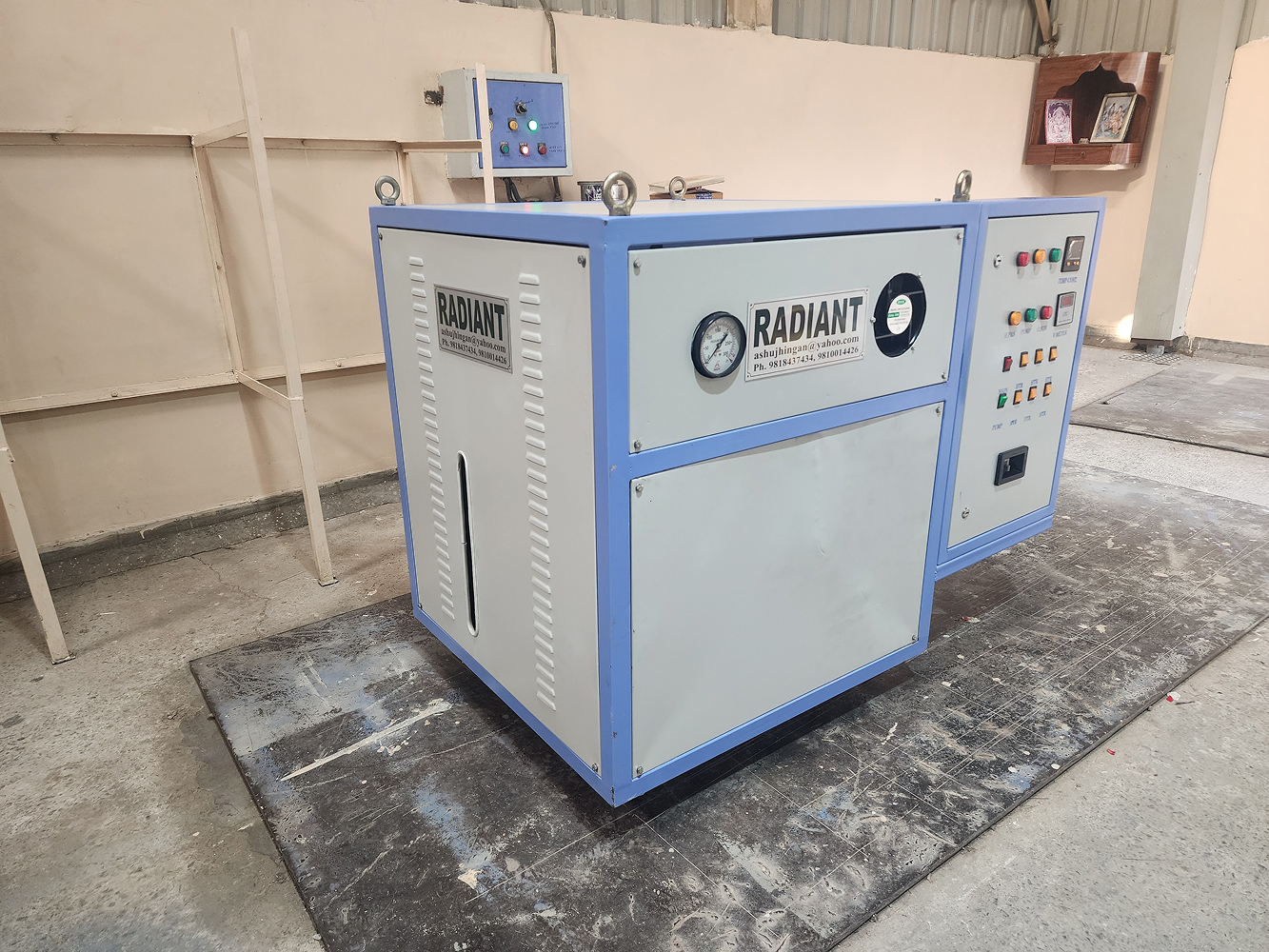

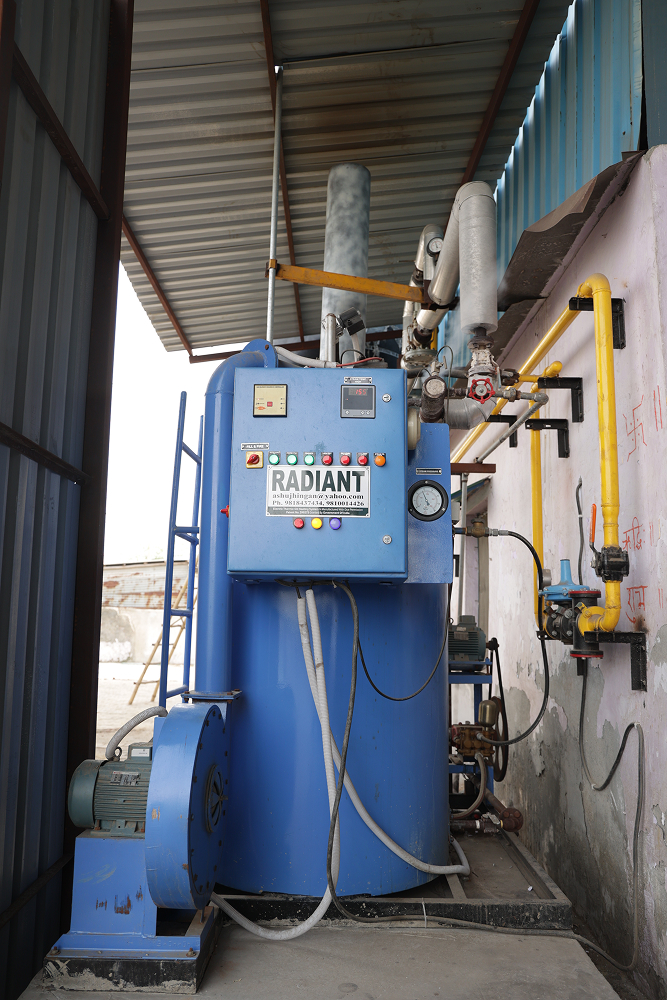

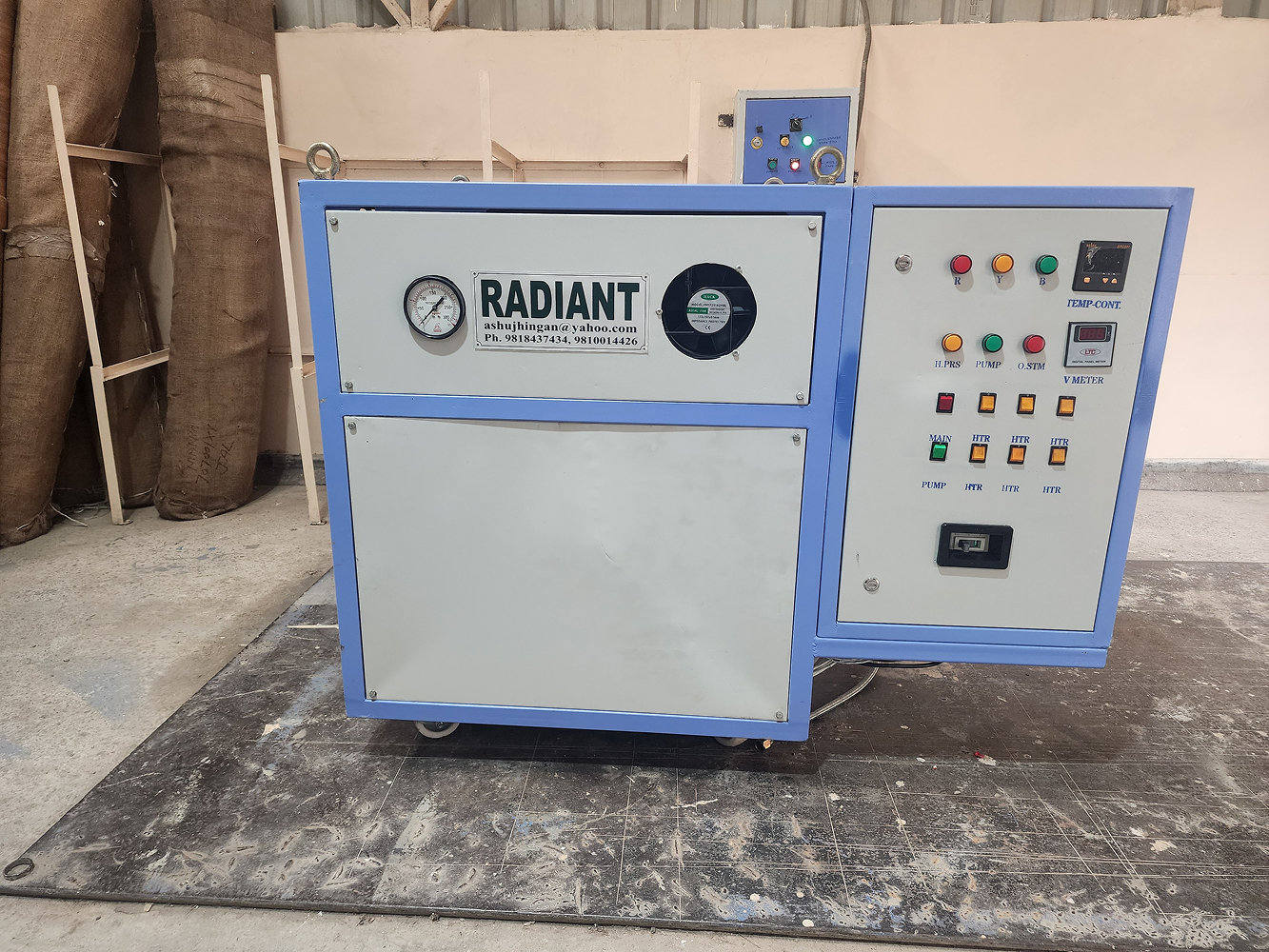

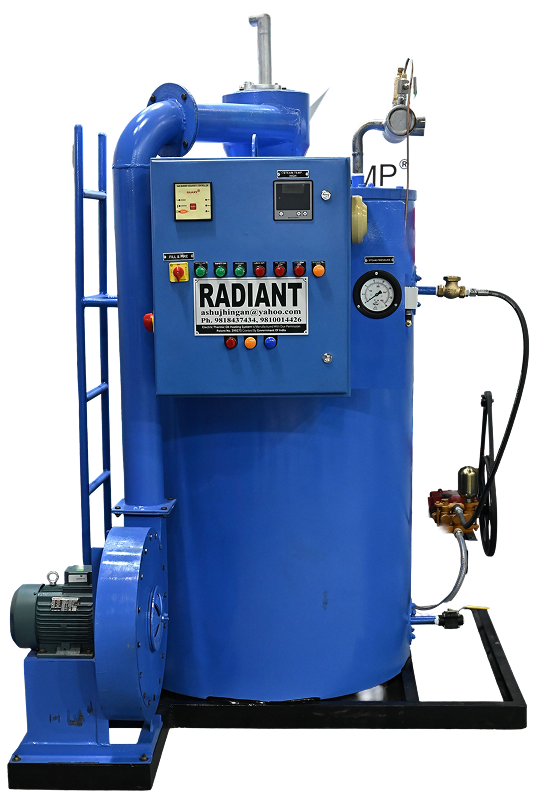

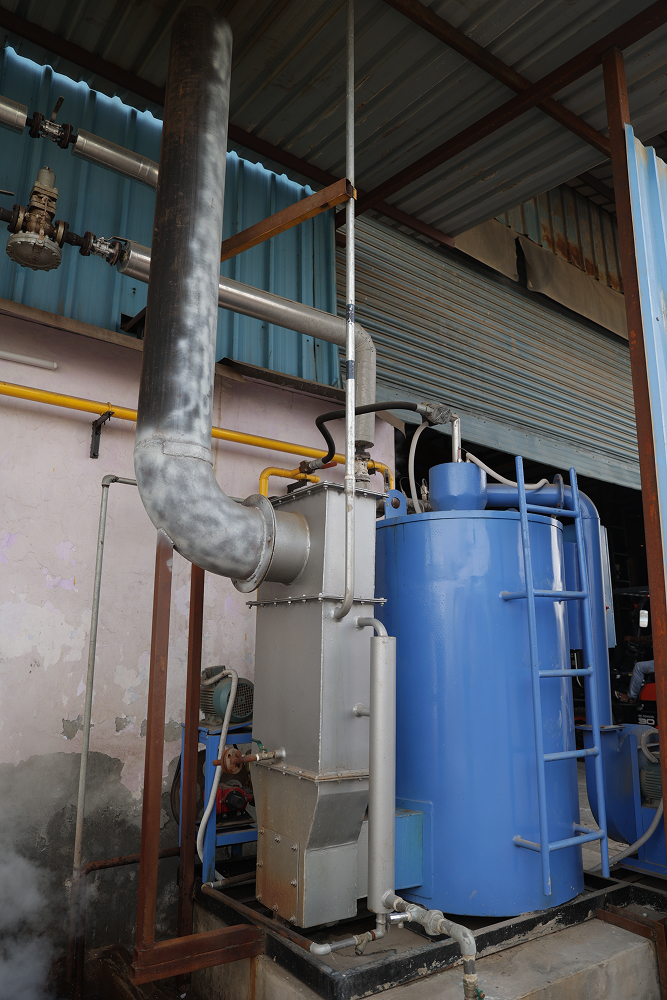

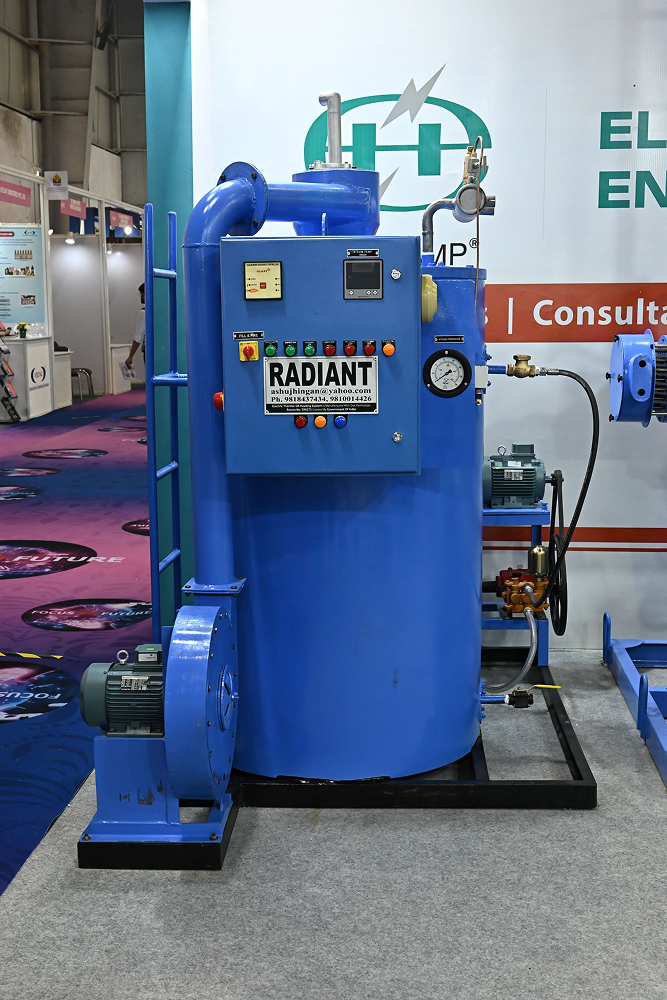

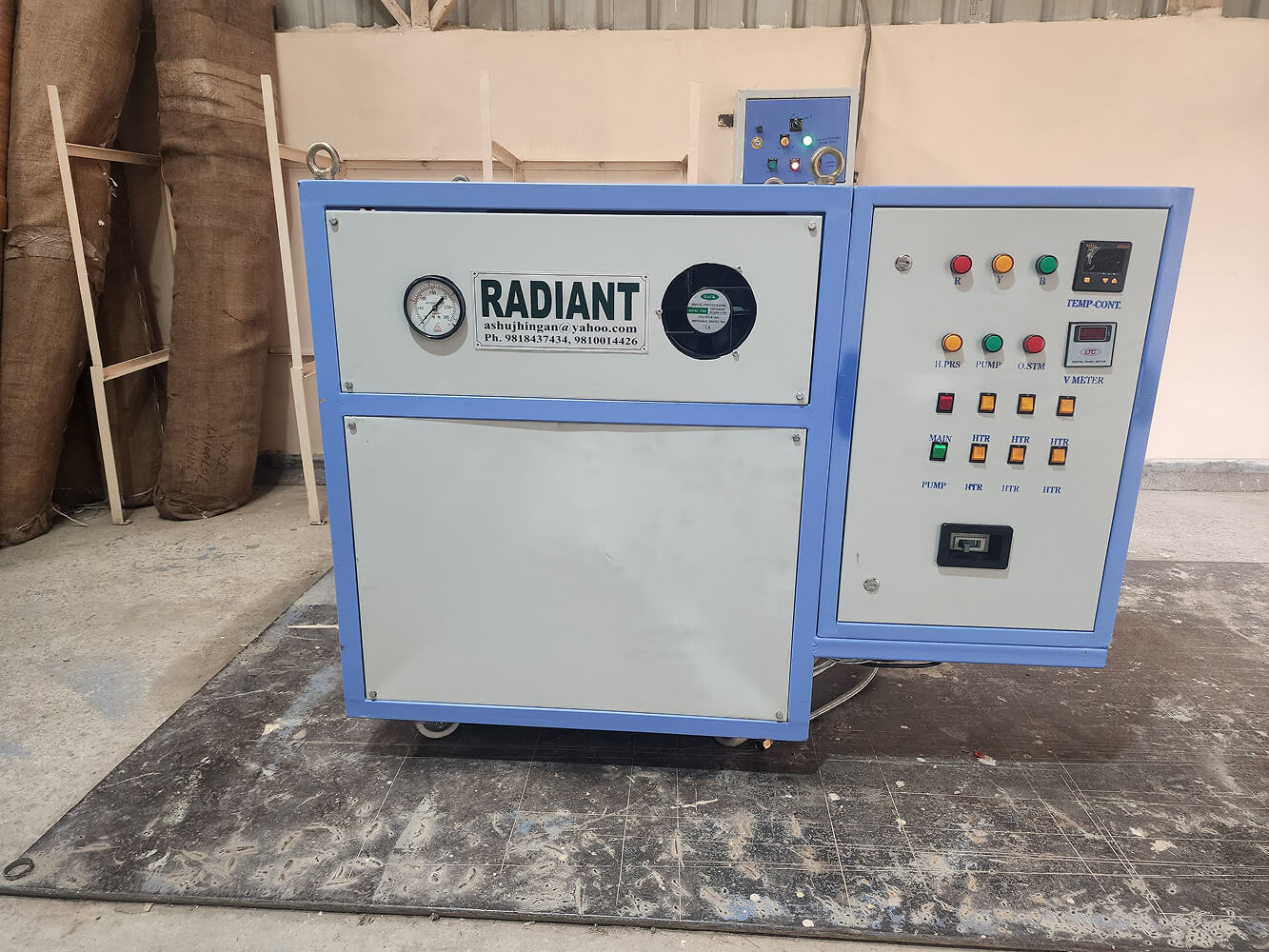

Available in gas-fired as well as electrically driven configurations, allowing customers to select the option best suited to their available energy source and operating requirements.
HIGH THERMAL EFFICIENCY
The system incorporates Reverse Flame Technology, ensuring complete combustion and helping maintain high thermal efficiency.
HIGH-QUALITY, DRY STEAM
A cyclonic steam separator helps achieve steam dryness of up to 90%, supporting consistent steam quality for the application.
CORROSION PROTECTION
An economizer preheats the feed water, while an optimiser assists in scavenging oxygen. This helps reduce corrosion and contributes to reliable system performance.
UNIFORM HEAT TRANSFER & LONGER COIL LIFE
The air-tight membrane coil design promotes uniform heat transfer and enhances the life of the heating coil.
FULLY AUTOMATIC OPERATION
The generator is equipped with a dust-free, pre-wired, fully automatic control panel, simplifying operation and control.
DESIGNED FOR RELIABLE PERFORMANCE
Every component of the Steam Generator is designed with efficiency, reliability and ease of operation in mind.
From efficient combustion and effective steam separation to feed-water preheating and automatic controls, the system brings together multiple engineering features to deliver consistent steam generation in a compact package.
AT A GLANCE
| Feature | Advantage |
|---|---|
| 3-pass, once-through design | Compact and efficient steam generation |
| Gas-fired / electrically driven options | Flexibility to choose the most suitable energy source |
| Multiple fuel-firing options | Greater operational flexibility |
| Reverse Flame Technology | Complete combustion & high thermal efficiency |
| Cyclonic steam separator | Steam dryness up to 90% |
| Economizer + Optimiser | Feed-water preheating & reduced corrosion |
| Air-tight membrane coil | Uniform heat transfer & enhanced coil life |
| Fully automatic control panel | Simple and convenient operation |
WATER QUALITY MATTERS
Maintaining appropriate water quality is crucial for optimum performance of the steam generator. Proper water-quality management helps protect the system and supports reliable long-term operation.
WHY ELECTRO HEAT?
With overfour decades of experience, Electro Heat Engineers combines heating expertise with a strong focus on quality, innovation, energy savings and machine-use optimisation.
The company has a Pan-India service network of qualified engineers and serves more than 5,000 box manufacturers across 100+ cities.
Our approach is simple:
**ENGINEERED FOR EFFICIENCY.
DESIGNED FOR RELIABILITY.
BACKED BY EXPERIENCE.**
ELECTRO HEAT ENGINEERS
Inventors | Consultants | Manufacturers
Reliable heating and steam-generation solutions for the
corrugated box industry.
